Enhancing Construction Site Safety: Advanced Deep Learning Approaches for Accurate Helmet Detection

Lefki Ioanna Panagiotou*, Zacharias Iosif Sifakis*
University of Wisconsin - Madison
ECE766 - Final Project (Spring 2024)
*Indicates Equal Contribution
Code Google Slides

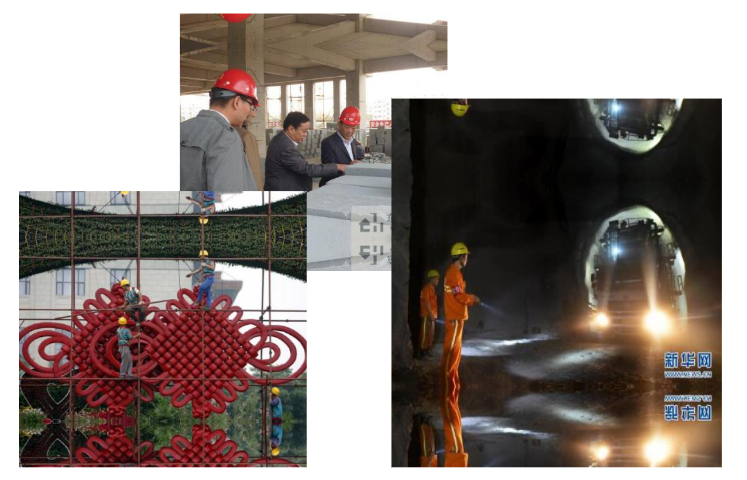

Descriptive Alt Text

Sample images from the Hard Hat worker dataset [5].

Introduction and Motivation

The construction industry is known for its high-risk environments, with workers exposed to various hazards, including falling objects, which can lead to severe head injuries or even fatalities. The critical nature of these accidents, particularly head injuries resulting from the improper use of safety helmets, underscores a pressing concern for worker safety. In 2012 alone, the construction sector witnessed over 65,000 head injuries requiring days away from work, with head injuries culminating in 1,020 fatalities, according to the 2015 edition of the National Safety Council's "Injury Facts" chartbook [6]. Moreover, out of the total of 391 people with body parts injured in the construction industry in 2016, 161 people (41.2%) were injured in the head, according to the Korea Occupational Safety and Health Agency [9].

In response to this alarming issue, this project aims to find the best automatic safety helmet detection system that will mitigate workplace accidents, by leveraging the advanced capabilities of deep learning models in object detection. Many architectures can be used to solve this object detection problem. In this research, we investigate various state-of-the-art models, including YOLOv5 [7], YOLOv8 [8], and Vision Transformers (ViT) [3], specifically the Detection Transformer (DETR), to ascertain their applicability and effectiveness on our dataset.

Prior Work on Safety Helmet Detection

Several prior studies in safety helmet detection on construction sites have used sensor-based methods and some algorithmic-based approaches. In [1], a combination of the Zigbee and Radio Frequency Identification (RFID) technologies was used to detect personal protective equipment (PPE) in workers. In [4], the authors combined Haar-like features and Circle Hough Transform (CHT) techniques for helmet detection. Also, in [11], an automatic helmet detection method using Histograms of Oriented Gradient (HOG) features and the CHT technique was proposed.

More recent studies have focused on using deep learning techniques, particularly YOLO architectures, for safety helmet detection. In [13], different YOLO architectures were compared, with YOLOv5x providing the best precision. In [11], YOLOv3 with Gaussian blurring was used to address data imbalance issues.

However, challenges remain, especially in detecting helmets in scenes with multiple workers and when the worker is not facing the camera. These insights underscore the need for ongoing research to refine deep learning models further, ensuring their effectiveness in real-world construction site environments and ultimately enhancing worker safety through improved automated detection systems. This is the reason we also apply the Vision Transformer (ViT) architecture for this particular dataset, which has not been applied before to the best of our knowledge

Dataset Description

The dataset we used for this project is the Hard Hat worker image dataset published by MakeML [5]. This dataset is specifically designed for the detection of hard helmets used in the construction industry. It contains 5000 images, each accompanied by bounding box annotation files. Initially, the dataset includes three classes: Helmet, Person, and Head with more than 26000 total instances.

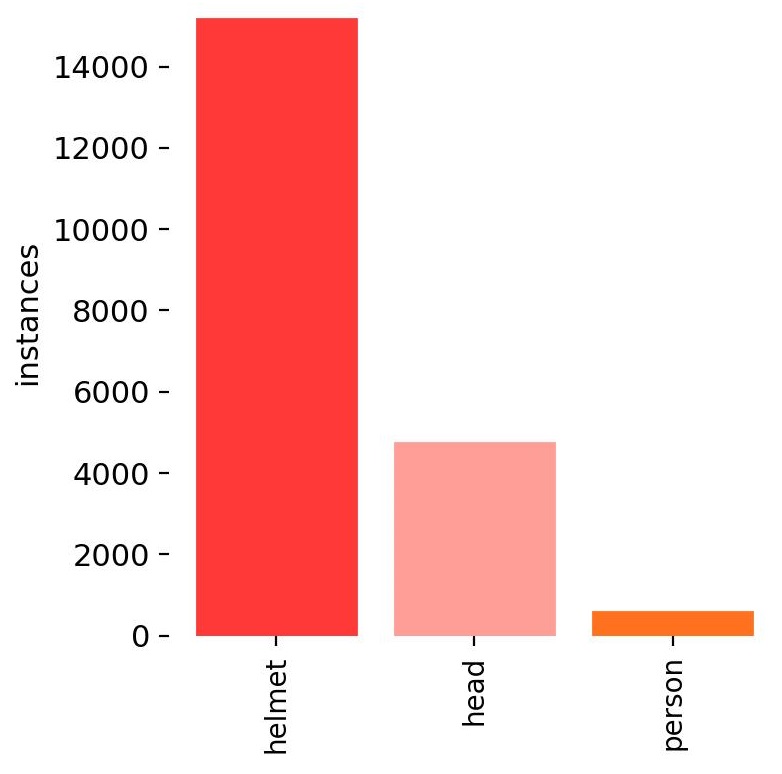

Histogram of the three classes in the dataset
Figure 1: Histogram of the three classes in dataset.

Data Pre-processing

As we can observe from the Figure 1 above, the dataset is highly imbalanced. Most of the instances (approximately 15000) refer to the 'helmet' class while only about 5000 instances are of the 'head' class and less than 1000 instances are of the 'person' class. So, for this research, we only focus on two classes: 'Helmet' and 'Head'. The decision to focus only on these two classes is also based on the project’s primary goal of detecting whether workers are wearing their safety helmets correctly. By identifying instances of "Head" without a corresponding "Helmet," the system can alert supervisors to potential safety violations, allowing for prompt corrective action. Furthermore, in order to run the YOLO experiments, we reshaped the images into (640x640) to comply with the YOLO input size requirements. Finally, we split our data into 3 sets (training, validation, and test sets) with 3000, 1000, and 1000 images respectively.

Method

YOLO

For this project, we trained the YOLOv5 and YOLOv8 models. These are state-of-the-art object detection architectures that have gained significant popularity due to their efficiency and accuracy. These architectures share several key components that contribute to their exceptional performance:

  1. Backbone: Both YOLOv5 and YOLOv8 employ a modified version of the CSPNet (Cross Stage Partial Network) as their backbone for feature extraction. This design choice helps reduce the model's complexity while maintaining its effectiveness in capturing essential features from the input images.
  2. Neck: The PANet (Path Aggregation Network) serves as the neck in these architectures. Its primary function is to aggregate feature maps from different scales, enabling the model to detect objects of various sizes more effectively. The neck plays a crucial role in enhancing the model's ability to handle scale variations.
  3. Head: The detection head is responsible for predicting bounding boxes, objectness scores, and class probabilities. In YOLOv5, anchor boxes are utilized to improve detection accuracy. However, YOLOv8 adopts an anchor-free split Ultralytics head, which contributes to better accuracy and a more efficient detection process compared to anchor-based approaches.
  4. Scalability: Both versions of YOLO offer multiple model sizes (nano, small, medium, large, extra large) according to the number of parameters, allowing users to choose a model that best suits their specific requirements in terms of speed and accuracy. This scalability makes YOLO adaptable to various application domains and computational constraints.

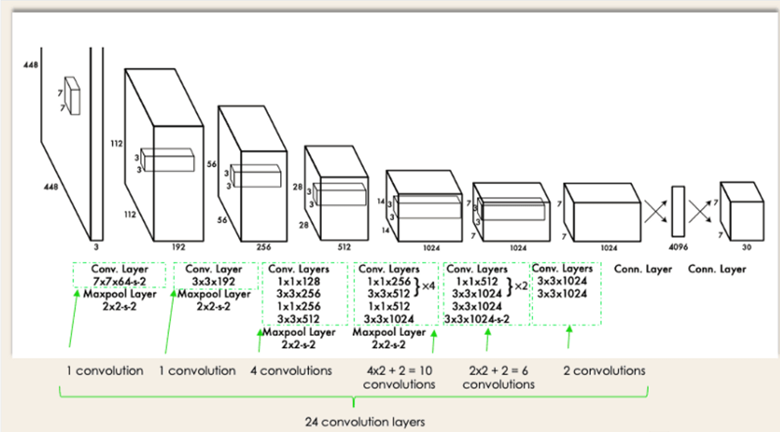

Visual representation of YOLO model architecture
Figure 2: Visual representation of YOLO model architecture. Image from [14]

Here, we focus on the YOLOv5n and YOLOv8n variants due to limited computation resources.

DETR

addition to YOLO architectures, we also explored the use of DETR (Detection Transformer), a novel architecture that approaches object detection with a set-based global loss and uses transformers. DETR was proposed by the Facebook AI Research team in 2020 and eliminates the need for many hand-designed components like anchor generation and non-maximum suppression that YOLO relies on. This method has not been used for this specific dataset, to the best of our knowledge, and based on our results it can become one of the best approaches. It consists of 3 main components:

  1. CNN Backbone: DETR utilizes the pretrained ResNet50 for feature extraction.
  2. Encoder - Decoder: These layers produce the final set of predicted class labels and bounding boxes through multiple multi-head self-attention and decoder-encoder attention.
  3. Feed Forward network: for the final detection prediction.

The exploration of DETR is aimed at understanding its potential for providing more scalable and efficient solutions in environments that require handling a large variety of object sizes and complex scenes.

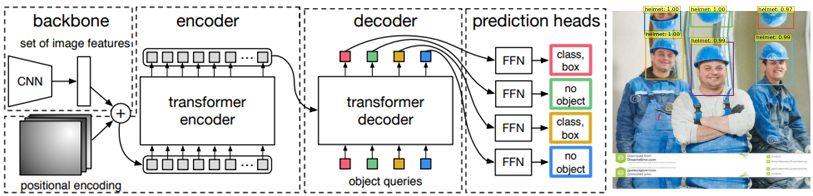

Visual representation of DETR model architecture
Figure 3: Visual representation of DETR model architecture. Image from [15]
The model is trained on the COCO dataset which contains 80 classes, not including ours. Therefore, the need to fine-tune the model to our dataset arose.

Experimental Setup

In order to obtain the following results, the YOLO and DETR experiments were conducted using NVIDIA GeForce RTX 3050 GPU. The hyperparameters used to achieve the observed results are detailed in Table 1 below.

Table 1: Training Configuration
Model # of Parameters (M) Optimizer # of Epochs Learning rate Batch Size
YOLOv5n 1.9 SGD 50 0.01 32
YOLOv8n 3.2 Adam 50 0.001 32
DETR 41.3 AdamW 30 0.01 4
YOLOv5x 86.7 SGD 50 0.001 32

Evaluation Metrics

We evaluate the performance of the models using metrics such as precision, recall, and mean average precision (mAP), each serving a distinct role in assessing the effectiveness of the helmet detection models. More specifically,

  • Precision: measures the proportion of true positive helmet predictions among all positive predictions, ensuring the model minimizes false alarms that could cause unnecessary interruptions on construction sites.
  • Recall: evaluates the model's ability to detect all actual helmets present, even in challenging conditions, which is vital for not missing any helmets that could compromise worker safety.
  • Mean Average Precision (mAP): provides a comprehensive measure of the model's quality by averaging precision values at different recall levels, enabling evaluation of its effectiveness in accurately identifying helmets under diverse and challenging real-world conditions.

Results

Comparing numerical results

Our experimental analysis involved three advanced deep learning models—YOLOv5, YOLOv8, and DETR—each tested under various conditions and configurations to evaluate their effectiveness in helmet detection on construction sites. The performance metrics precision, recall, and mean average precision (mAP) provided comprehensive insights into each model's capability (Table 2).

YOLOv5n and YOLOv8n demonstrated robust performance across all categories, with YOLOv8n showing a slight edge in precision and recall, especially in the 'helmet' and 'head' classes. This is indicative of YOLOv8n's improved architecture, which utilizes an anchor-free split Ultralytics head, enhancing detection accuracy and processing efficiency. Specifically, YOLOv8n reached a precision of 0.934 and a recall of 0.907 for helmets, reflecting its strong suitability for real-time safety applications where detecting safety gear accurately is critical.

DETR, employing a transformer-based approach, outperformed both YOLO models in terms of precision and recall in low-light conditions and complex scenarios, as highlighted by the dark image test. DETR’s highest scores were in the 'helmet' category with a precision of 0.941 and a recall of 0.912. Its architecture allows it to manage challenging detection tasks better, thanks to its global view of the image and the elimination of many hand-designed components of conventional detectors.

Confusion matrix for the test dataset using YOLOv5 (true vs. predicted labels)
Figure 4: Confusion matrix for the test dataset using YOLOv5 (true vs. predicted labels)

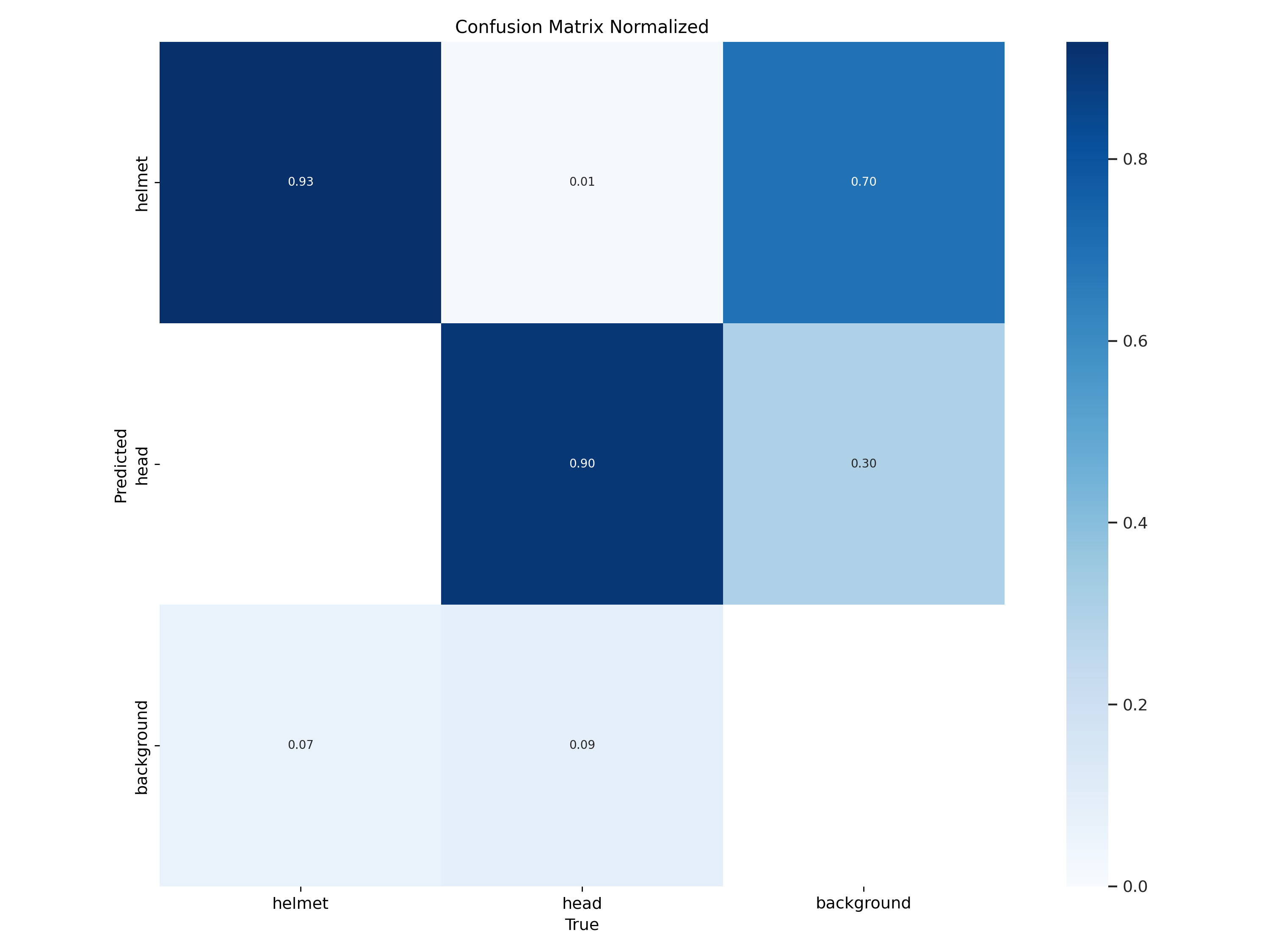

Confusion matrix for the test dataset using YOLOv8 (true vs. predicted labels)
Figure 5: Confusion matrix for the test dataset using YOLOv8 (true vs. predicted labels)
Precision-Recall curve (PR Curve) for the test dataset using YOLOv5
Figure 6: Precision-Recall curve (PR Curve) for the test dataset using YOLOv5

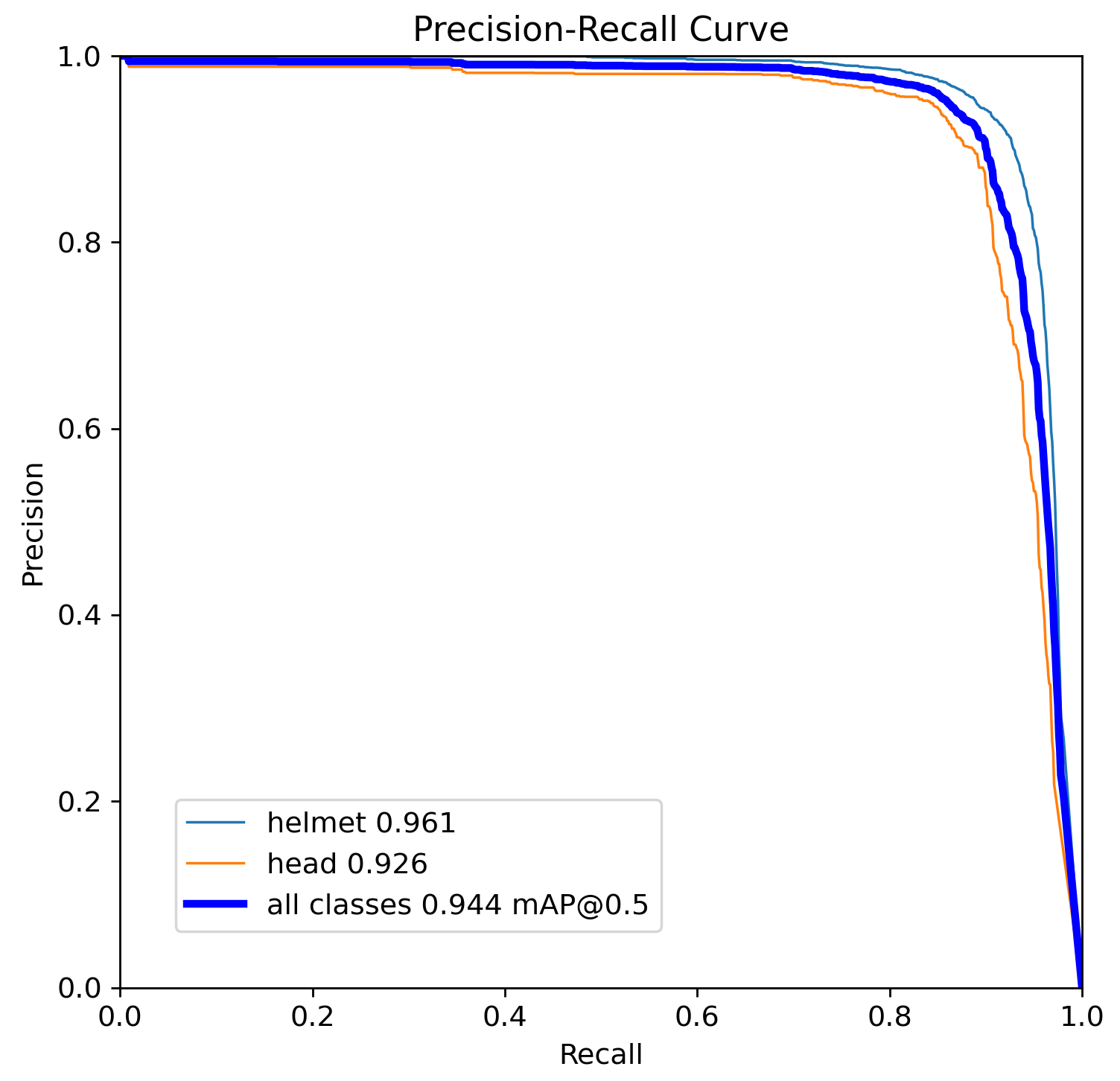

Precision-Recall curve (PR Curve) for the test dataset using YOLOv8
Figure 7: Precision-Recall curve (PR Curve) for the test dataset using YOLOv8
Table 2: Model Evaluation Metrics
Model Class Images Instances Precision Recall mAP
YOLOv5x all 1000 - 0.910 0.890 -
YOLOv5n all 1000 4888 0.903 0.869 0.925
helmet 1000 3759 0.934 0.872 0.944
head 1000 1129 0.872 0.865 0.906
YOLOv8n all 1000 4888 0.918 0.895 0.944
helmet 1000 3759 0.934 0.907 0.961
head 1000 1129 0.901 0.882 0.926
DETR all 1000 4888 0.927 0.903 0.952
helmet 1000 3759 0.941 0.912 0.971
head 1000 1129 0.918 0.899 0.943

Comparing visual results

In this section, we present the capabilities and limitations of the Transformer and YOLO models across varied testing scenarios. In the first instance (Figure 8), both models were evaluated using a clear image, where they accurately detected all classes. However, the Transformer model demonstrated notably higher confidence levels than the YOLOv5n, suggesting superior reliability in straightforward scenarios. The second test (Figure 9) challenged the models with distant instances, revealing significant differences in performance. While the Transformer maintained high accuracy and confidence, the YOLOv8n model struggled, misclassifying a central red region as a helmet and failing to detect a helmet in the upper part of the image, indicating potential limitations in handling complex or ambiguous scenes. Lastly, in a low-light condition test (Figure 10), the Transformer model again showed its robustness with high confidence and flawless object classification. In contrast, the YOLOv8n model exhibited lower confidence and made critical errors, such as misclassifying a truck, underscoring the challenges YOLO faces in adverse lighting conditions. These comparative predictions underscore the importance of model selection based on the specific requirements and challenges of the deployment environment.

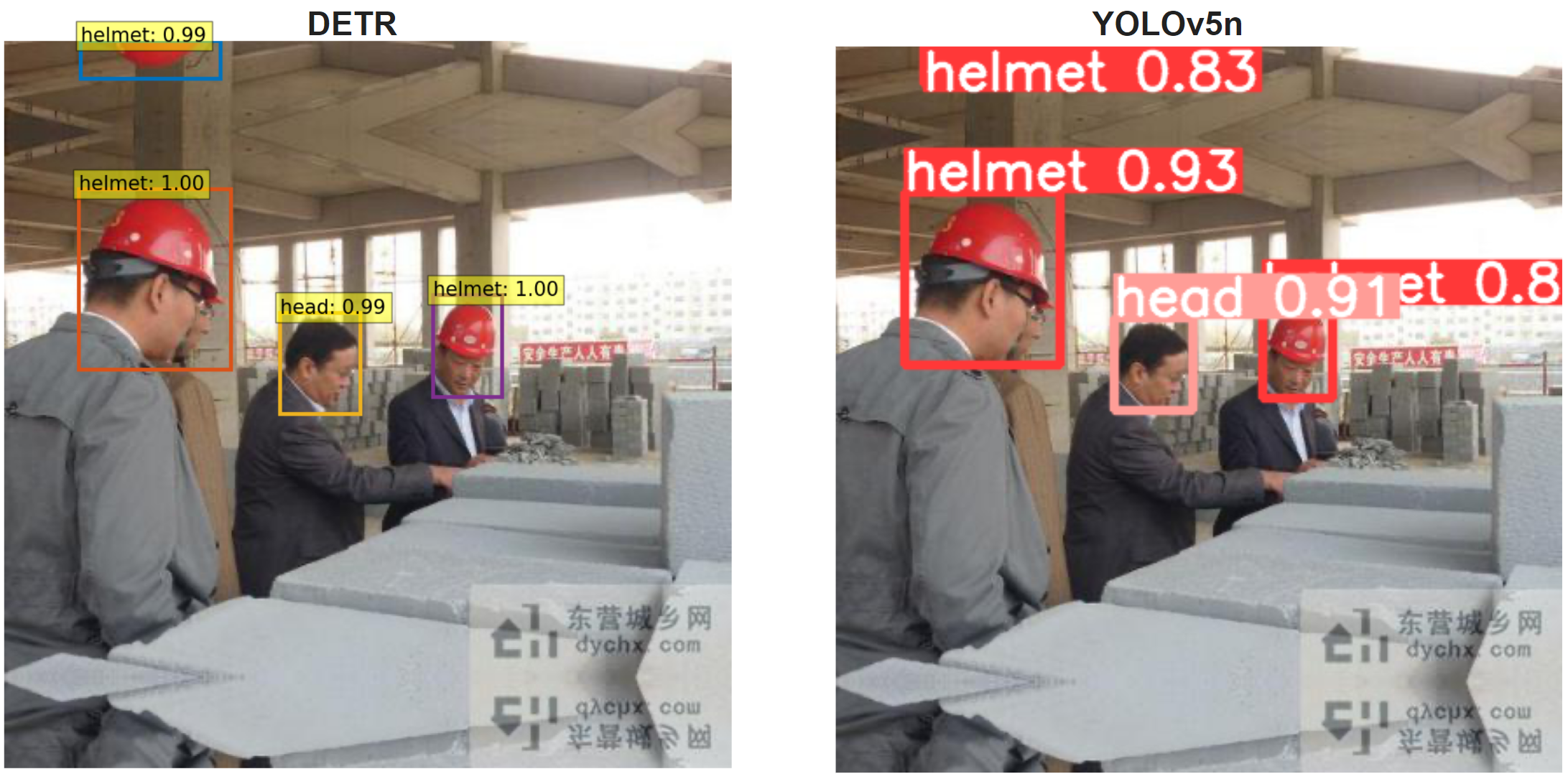

Description for Additional Image 1
Figure 8: Comparative Predictions from Transformer (left image) and YOLOv5n (right image) in a clear image.
Description for Additional Image 2

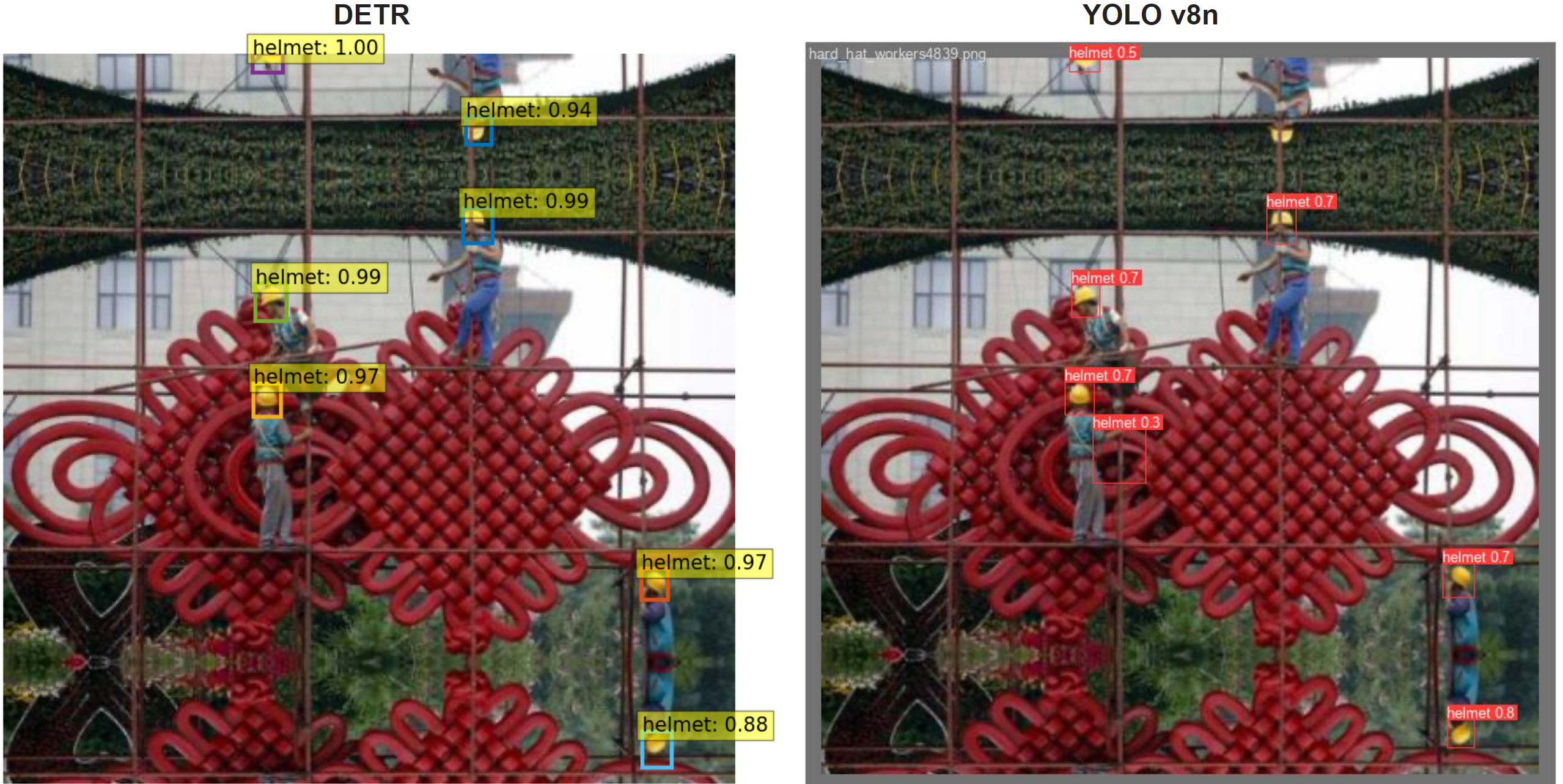

Figure 9: Testing Distant Instances with Transformer (left image) and YOLOv8n (right image). In this image, all instances are far from the camera, which is really challenging for the models.

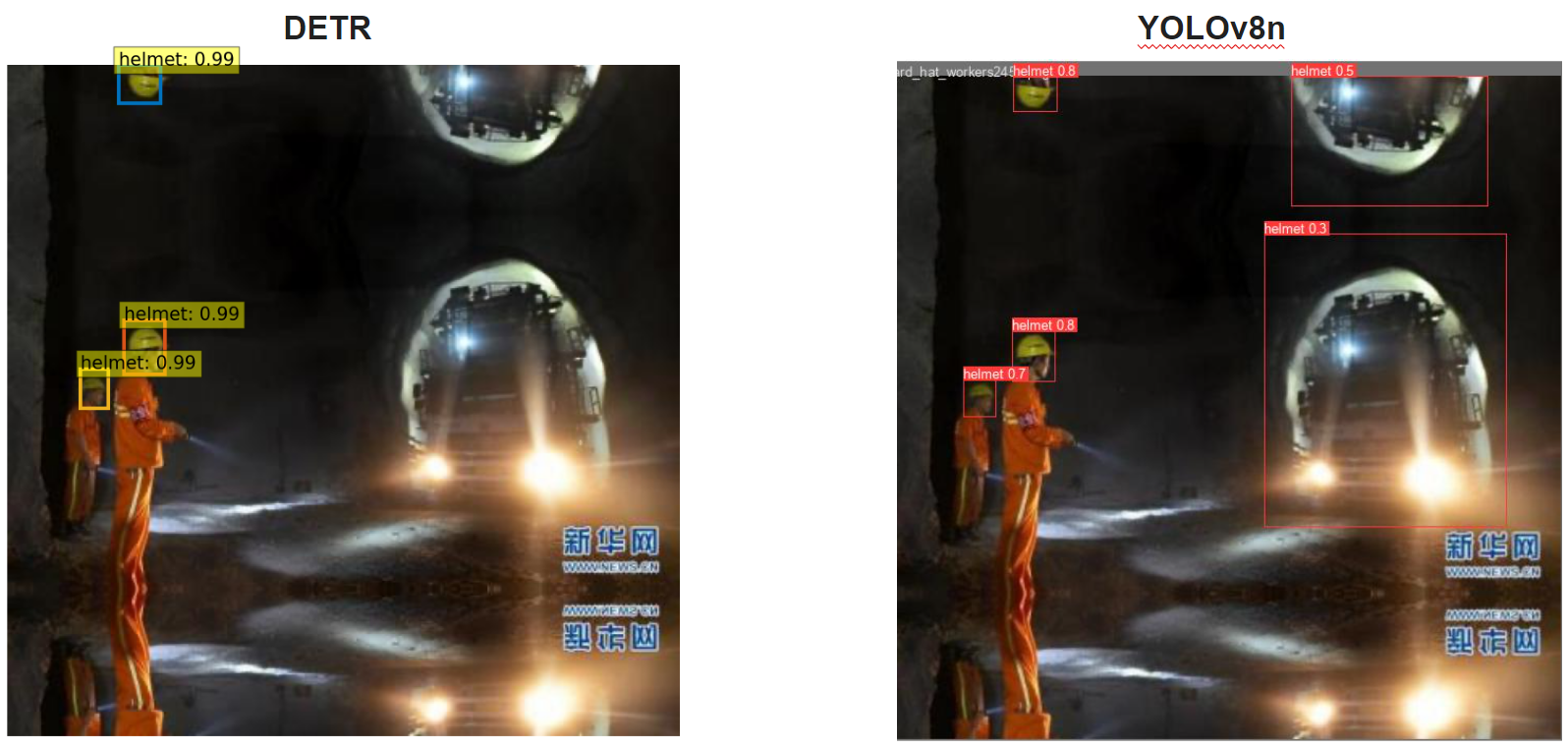

Description for Additional Image 3
Figure 10: Performance Comparison in Low-Light Conditions. This image, challenging due to its darkness, showcases predictions from the Transformer (left image) and the YOLOv8n (right image).
Predictions for test batch of 16 images using YOLOv5
Figure 11: Predictions for test batch of 16 images using YOLOv5

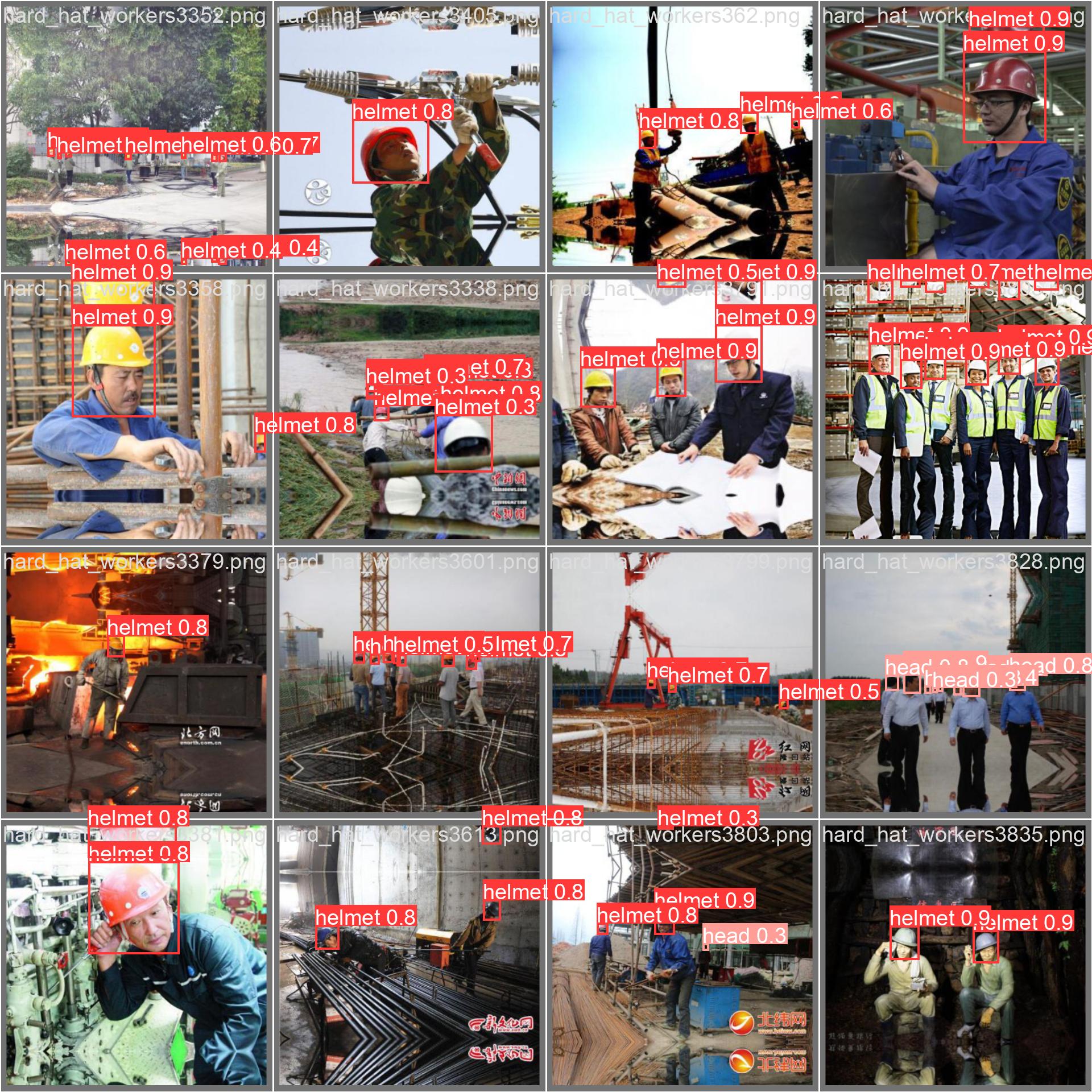

Predictions for test batch of 16 images using YOLOv8
Figure 12: Predictions for test batch of 16 images using YOLOv8
